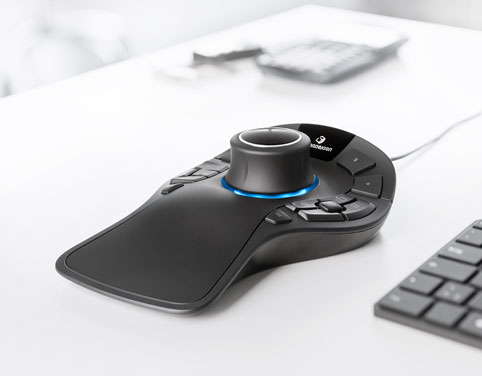

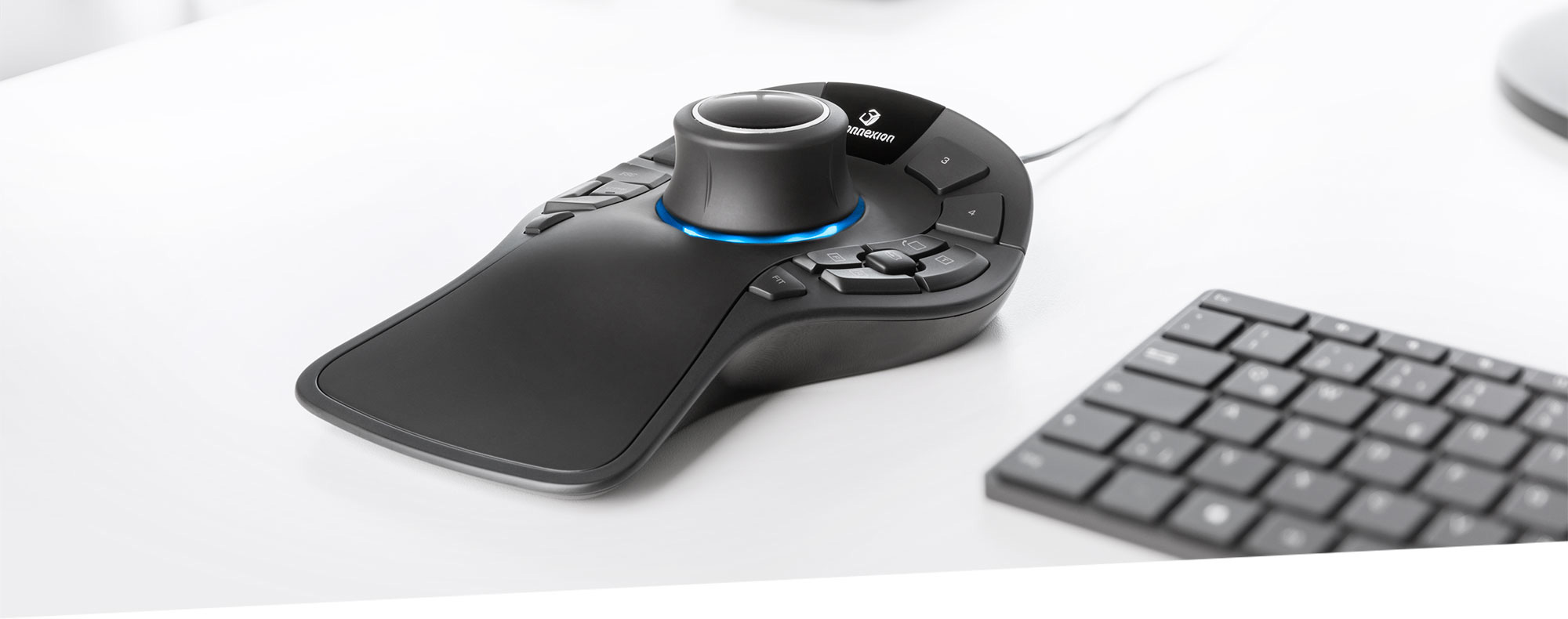

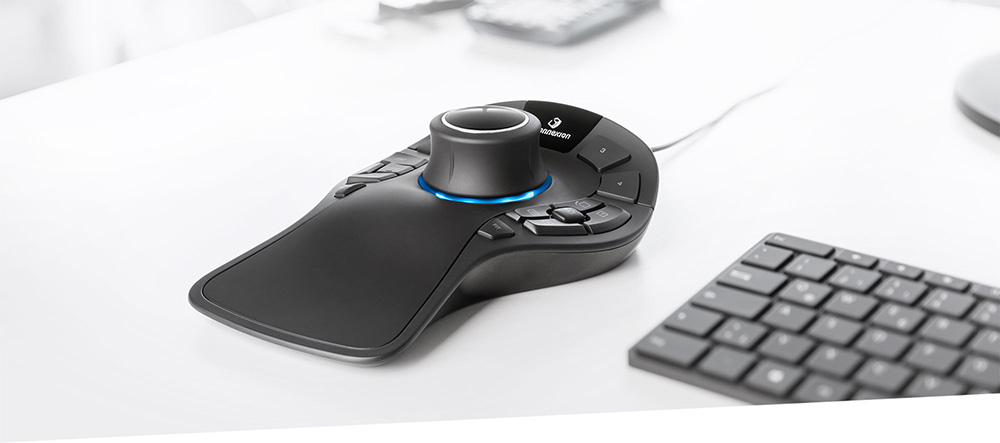

SpaceMouse Pro is the optimal tool for engineers, designers and architects worldwide to create 3D designs across an increasing variety of industries. Delivering intuitive, effortless, precision 3D navigation in CAD applications, the SpaceMouse Pro experience cannot be reproduced with a standard mouse and keyboard.
SpaceMouse Pro Wireless also available. Click here to find out more.
3Dconnexion’s patented 6-Degrees-of-Freedom (6DoF) sensor is explicitly designed to manipulate digital content and camera positions in industry-leading CAD applications. Push, pull, twist or tilt the 3Dconnexion controller cap to simply and intuitively pan, zoom and rotate your 3D drawing. This frees your other hand to simultaneously utilize a standard mouse to select, create or edit models with ease.
Below are leading software applications in their respective industries with certified 3D mouse support. For a larger overview of supported applications, click here.
SpaceMouse Pro automatically recognizes your application environment and assigns appropriate commands to four large, soft-touch intelligent function keys, helping you work smarter, not harder.
The on-screen display provides a convenient visual reminder of the commands assigned to the intelligent function keys on your computer screen, helping maintain focus.

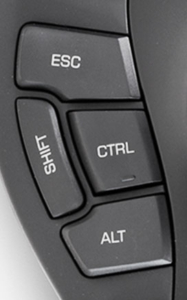

SpaceMouse Pro keyboard modifiers provide easy access to Control, Shift, Alt, Esc functions, saving time by reducing hand movement to the keyboard.
The full size, soft-coated hand rest ensures maximum comfort by positioning the hand naturally to easily grasp the 3Dconnexion controller cap.
Every one of SpaceMouse Pro’s 15 fully programmable buttons are perfectly positioned to allow effortless access to frequently used commands for more efficient, comfortable work during even the longest design sessions.

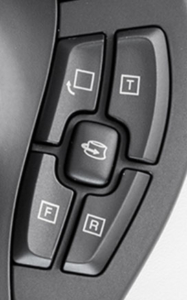

SpaceMouse Pro’s QuickView Keys offer fingertip access to 12 views, making it easier to detect errors, explore alternatives and present your work more effectively.
The rotation toggle key disables the rotation axes, providing simultaneous pan-and-zoom navigation in work modes like sketching.
With deeply and fully customizable command presets and macros, supported by our simple but powerful 3DxWare 10 driver, CAD professionals can individualize SpaceMouse Pro for peak performance. Work with efficiency, comfort and confidence using SpaceMouse Pro as the centerpiece of your CAD design workflow.
3Dconnexion six-degrees-of-freedom (6Dof) sensor
Full-size, soft-coated hand rest
4 Application Command Buttons
4 keyboard modifiers (Ctrl, Alt, Shift, Esc)
4 QuickView Keys
Rotation Toggle Key
Menu Key and Fit Key
15 programmable keys in total
On-screen display
Length: 204 mm / 8”
Width: 142 mm / 5,6”
Height: 58 mm / 2,3”
Weight: 665 g / 1,47 lb / 23,46 oz
SpaceMouse Pro
3-year limited hardware warranty
More information
Microsoft® Windows, macOS, Linux
More information
CE, UKCA, EAC, FCC, KC, RCM, BSMI, WEEE, RoHS-EU, RoHS-CN
More information
When combined, the 3Dconnexion SpaceMouse, Keyboard Pro with Numpad and CadMouse create a synergistic ecosystem that simply cannot be recreated using a regular mouse and keyboard. Use our Kit configurator to customize your personal 3Dconnexion desktop solution.
For the best experience and always the newest features make sure to install the newest driver.
DOWNLOAD DRIVER
