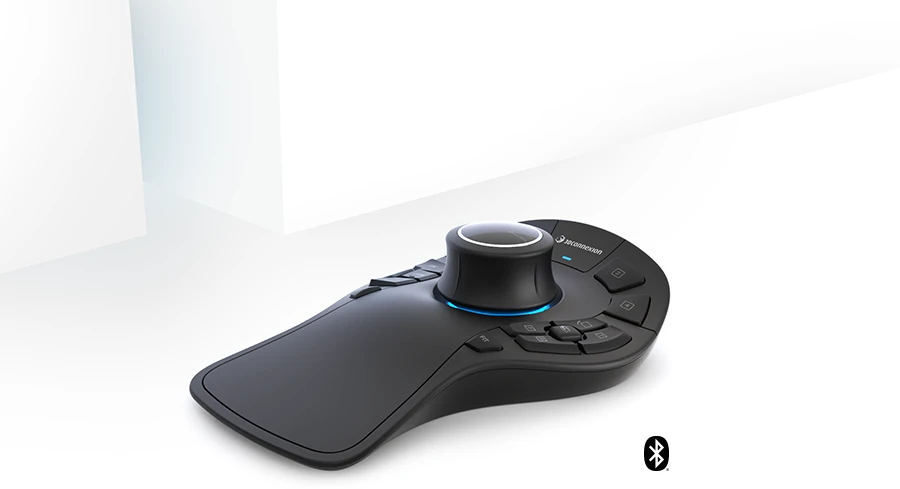

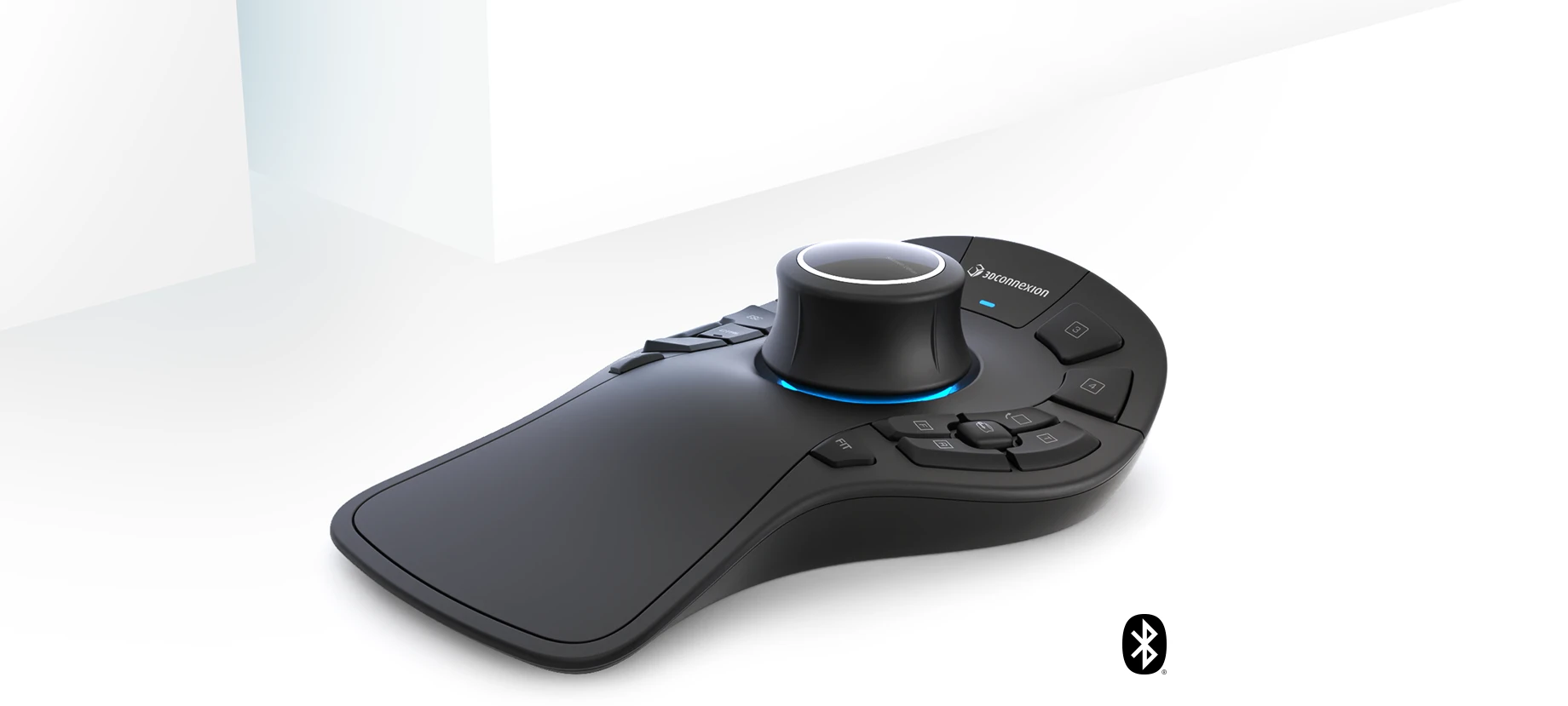

The modern CAD workstation is increasingly mobile. SpaceMouse Pro Wireless offers CAD professionals advanced ergonomics, the power and customization of SpaceMouse Pro in a format purpose-built for engineers, architects or designers on the move. With a small, high performance universal receiver, USB hub and stylish travel case, SpaceMouse Pro Wireless goes wherever you need to be.

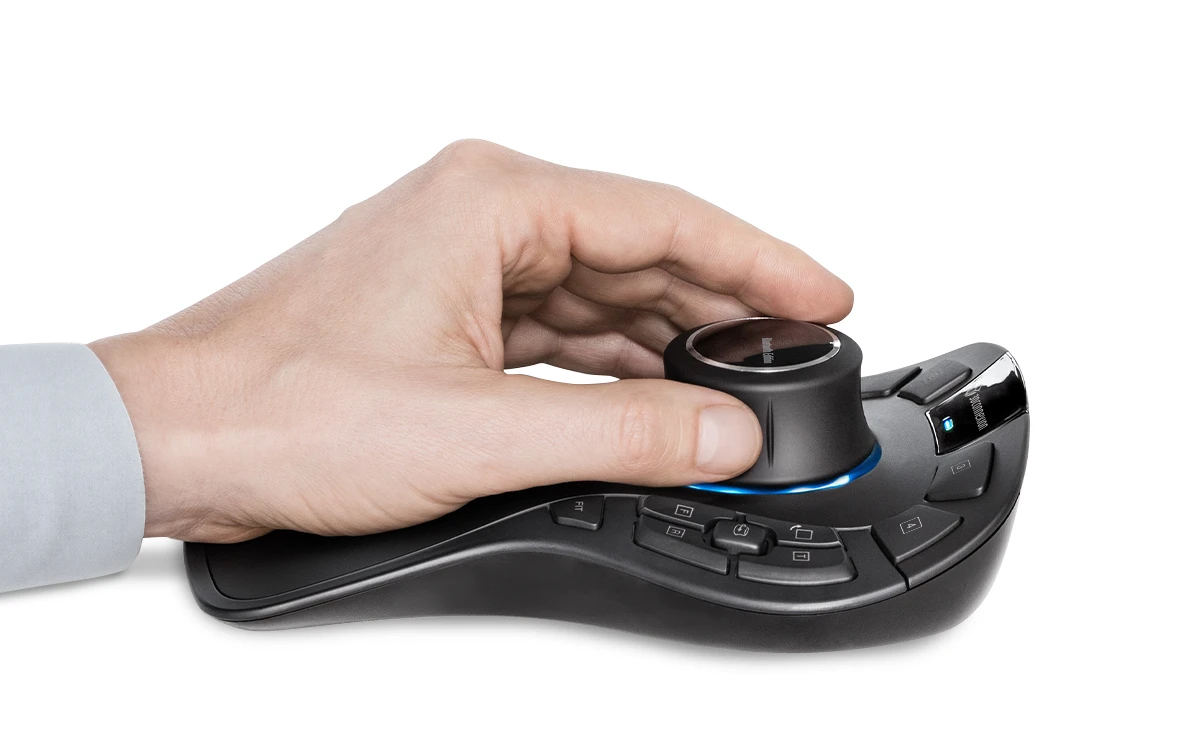

Connect with projects like never before with the 3Dconnexion 6-Degrees-of-Freedom (6DoF) controller cap. Effortlessly interface with 3D drawings and environments by gently pushing, pulling, twisting or tilting the cap. This frees your other hand to simultaneously utilize a standard mouse to select, create and edit models with ease. It’s simple, intuitive, and offers a deep, tactile link between CAD professionals and their work.
SpaceMouse Pro Wireless supports all industry-leading CAD and 3D applications.
See all supported applications
2,4 Ghz
Rechargeable
2 Months
SpaceMouse Pro Wireless provides a real-time connection to your 3D content with 2,4GHz wireless technology. Using 3Dconnexion’s Universal Receiver, CAD professionals can expect the reliability of responsiveness of a wired product.

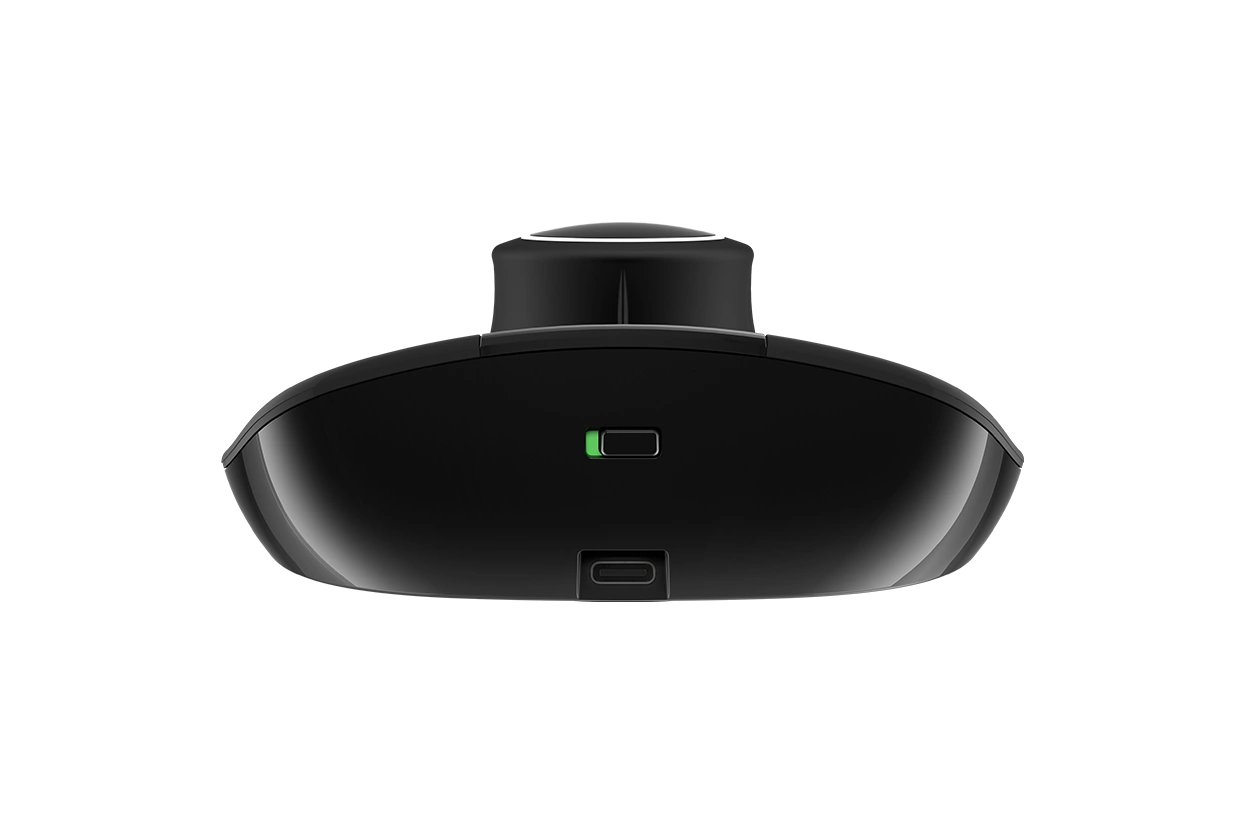

With up to two months of use before the need to recharge* and a stylish travel case, SpaceMouse Pro Wireless is always available, wherever and whenever it is needed.
*Battery life based on 8 hours per day, 5 days per week use.When a mouse is used intensively with repetitive patterns of movement, this can result in pain and functional impairments, also known as RSI syndrome or ‘mouse arm’.
Working with two hands – with a 3D mouse in your left hand and a conventional mouse in your right hand – helps preventing these symptoms, while making your CAD workflow considerably more efficient and healthier*.
Learn more about ergonomics *Source: Ergonomic Evaluation of 3D Mice - Fraunhofer Institute for Industrial Engineering (IAO)

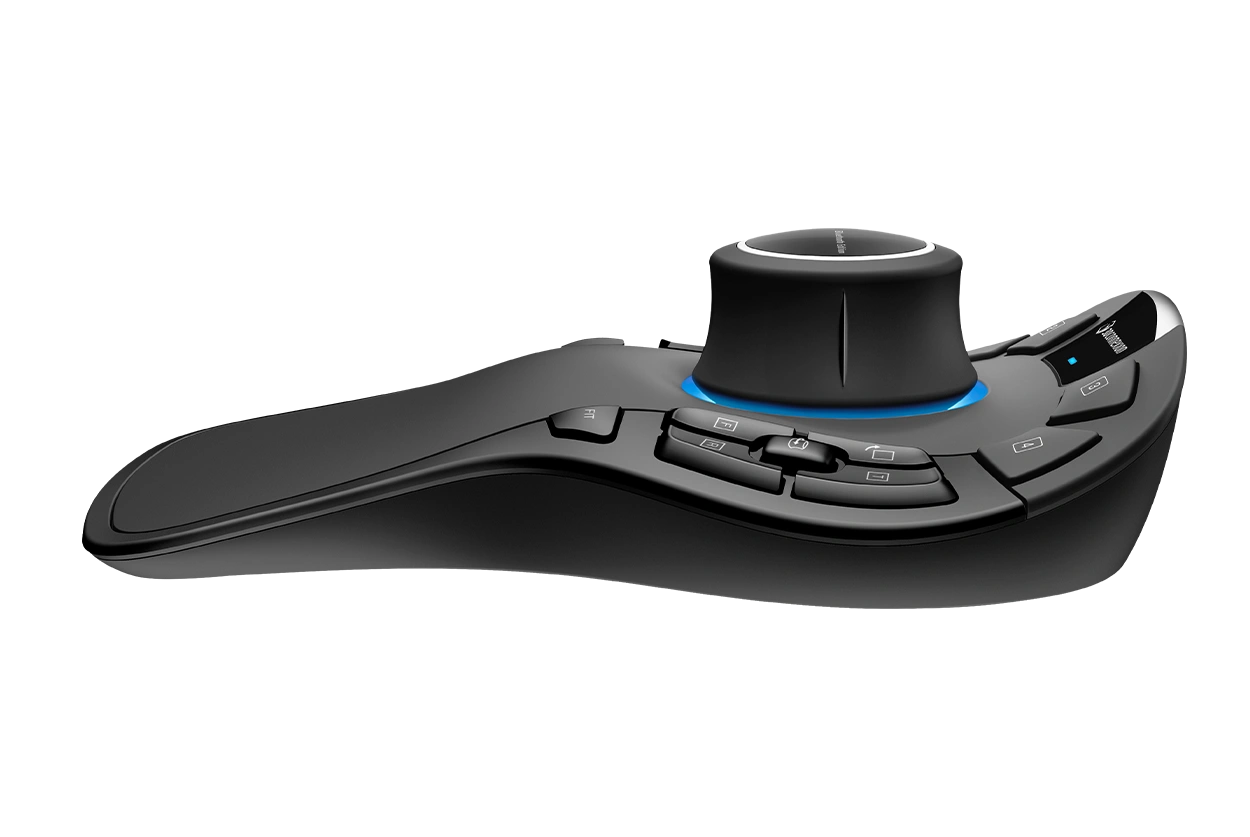

SpaceMouse Pro Wireless automatically recognizes application environments and assigns appropriate commands to four large Intelligent Function Keys, helping CAD professionals work smarter, not harder.
The on-screen display provides a convenient visual reminder of the commands assigned to the intelligent function keys on the computer screen, helping maintain focus.

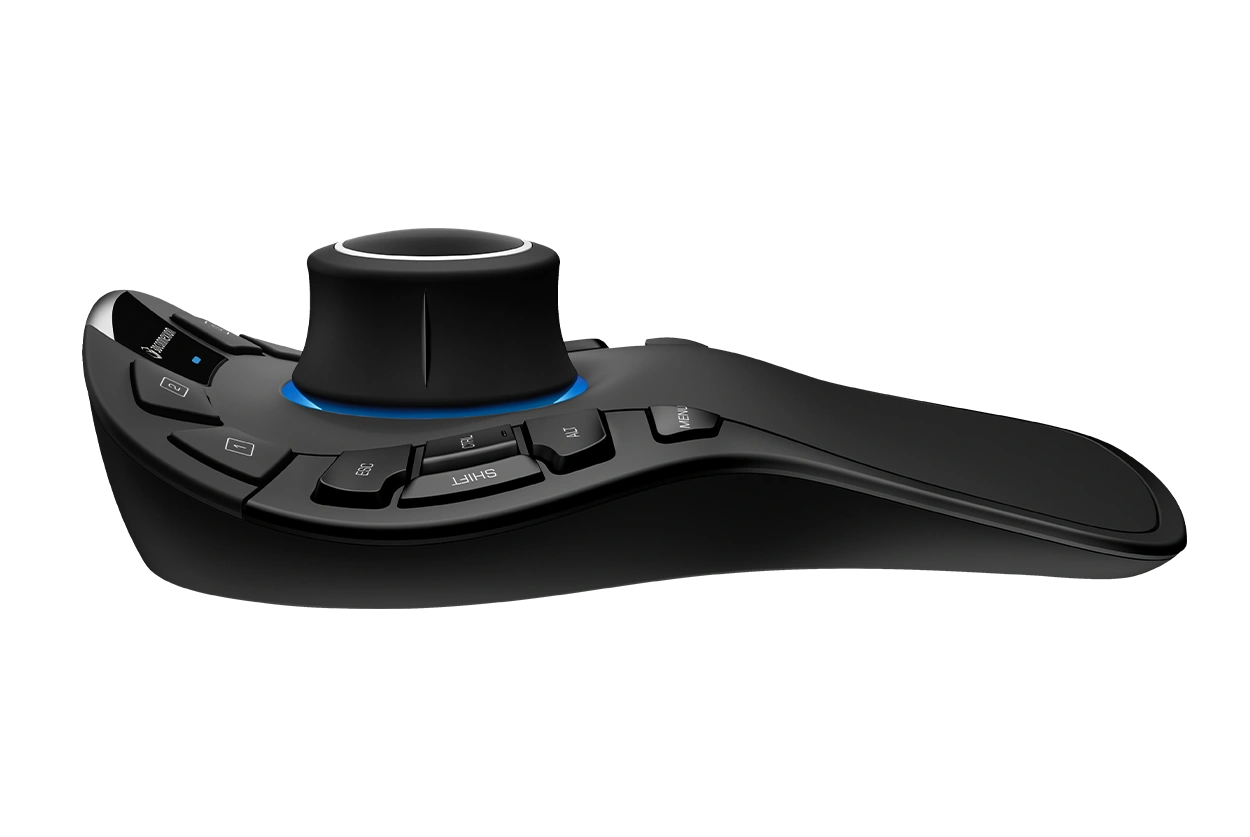

SpaceMouse Pro Wireless keyboard modifiers offer easy access to Control, Shift, Alt, Esc functions, saving time by reducing hand movement to the keyboard.
The full size, soft-coated hand rest ensures maximum comfort and optimal hand-positioning to naturally and easily hold the controller cap.

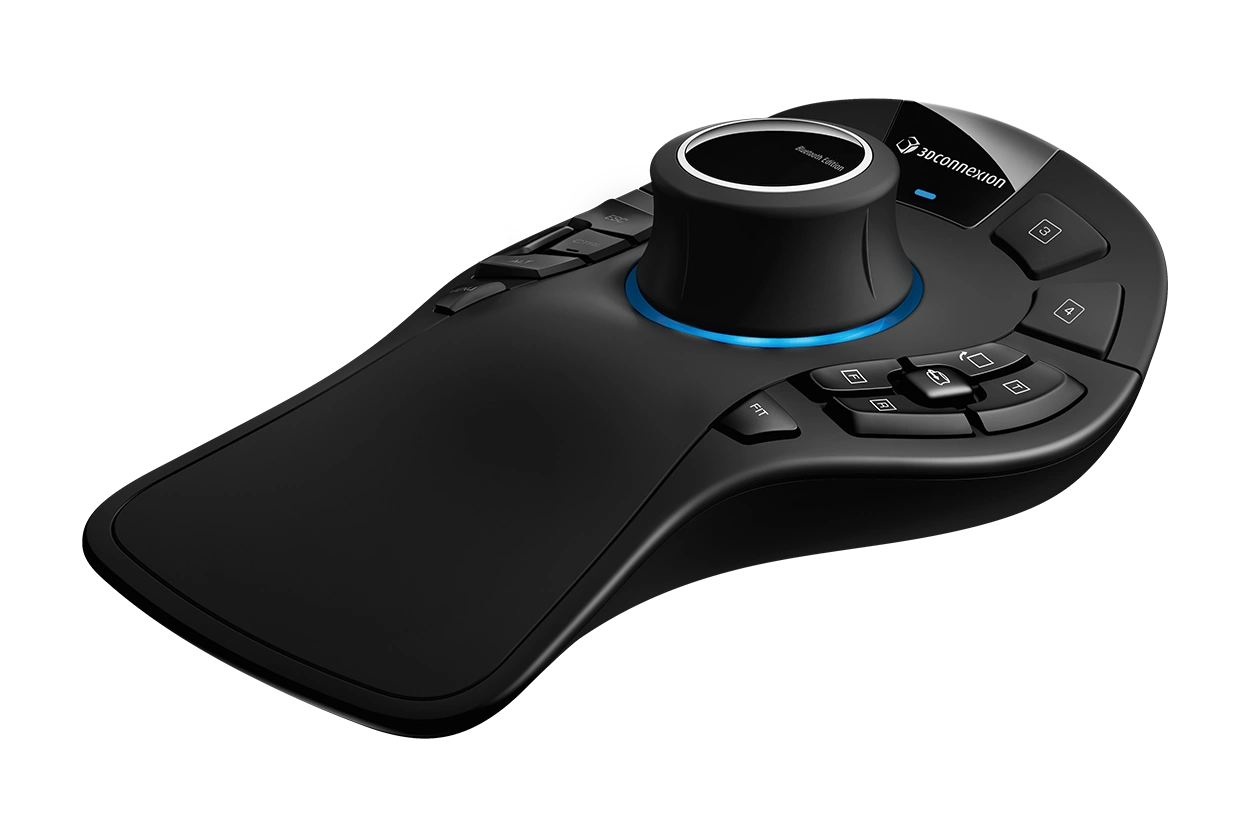

All fifteen fully programmable buttons are perfectly positioned to allow effortless access to frequently used commands for more efficient, comfortable work during the longest design sessions.
SpaceMouse Pro Wireless provides four QuickView Keys for access to multiple views, making it easier to detect errors, explore alternatives and present work more effectively.
The rotation toggle key disables the rotation axes, providing simultaneous pan-and-zoom navigation in work modes like sketching.
With deeply and fully customizable command presets and macros, supported by our simple but powerful 3DxWare 10 driver, CAD professionals can individualize SpaceMouse Pro Wireles for peak performance.
Learn more about 3DxWare 10
3Dconnexion Six-Degrees-of-Freedom (6DoF) sensor
Wireless and cable connectivity
4 Application Command Buttons
4 keyboard modifiers (Ctrl, Alt, Shift, Esc)
4 QuickView Keys
Rotation Toggle Key
Menu Key and Fit Key
Full-size, soft-coated hand rest
15 total programmable keys
On-screen display
3Dconnexion 2,4GHz wireless technology
USB Cable
Battery life: 2 months*
Rechargeable lithium polymer battery with 2000 mAh
Length: 204 mm / 8”
Width: 142 mm / 5,6”
Height: 58 mm / 2,3”
Weight: 563 g / 19,86 oz / 1,24 lbs
3-years limited hardware warranty
3Dconnexion SpaceMouse Pro Wireless
Carry case
3Dconnexion Universal Receiver
Twin-port USB hub
Micro USB cable 1,5 m
Micro USB cable 0,5 m
Microsoft® Windows, macOS
> more information
CE, FCC (Part 15, Class B), BSMI, RCM, KCC,
TELEC, NCC, WEEE, RoHS
> more information

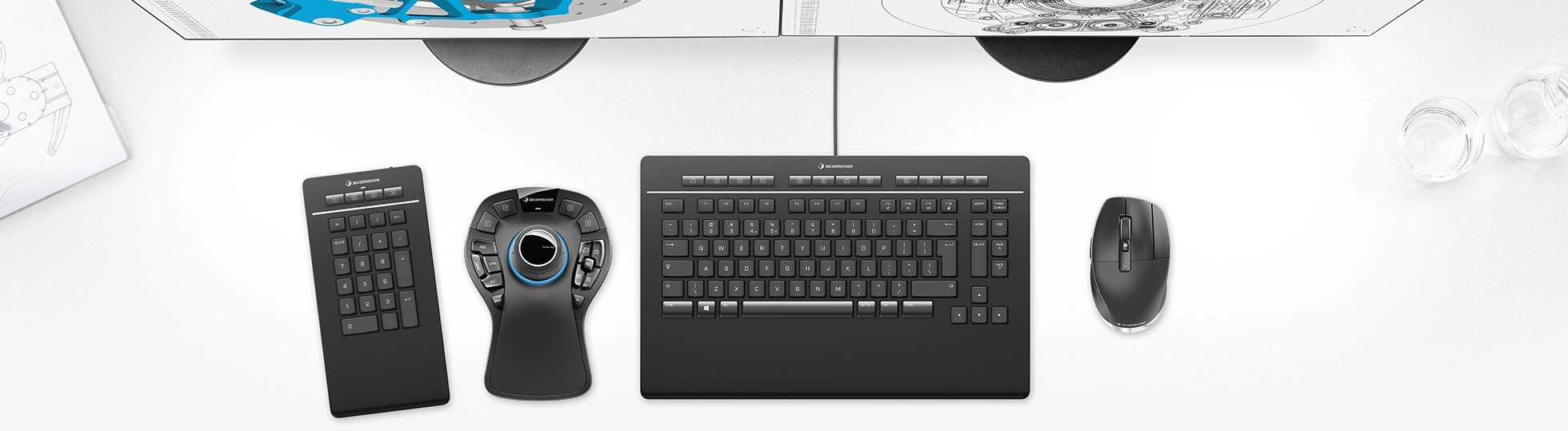

Combining the power of a 3D mouse with a CadMouse creates a synergy of form and function like none other. With CadMouse in the right hand selecting and creating with ease, and SpaceMouse Pro Wireless smoothly positioning objects and views with the left, users will experience the most ergonomic, efficient CAD workflow possible.
Discover the CADMouse product lineFor the best experience and always the newest features make sure to install the newest driver.
