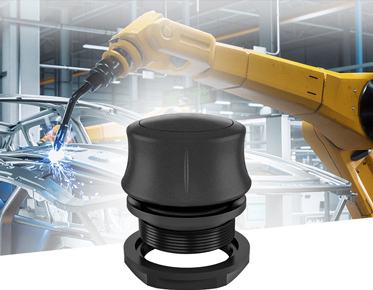

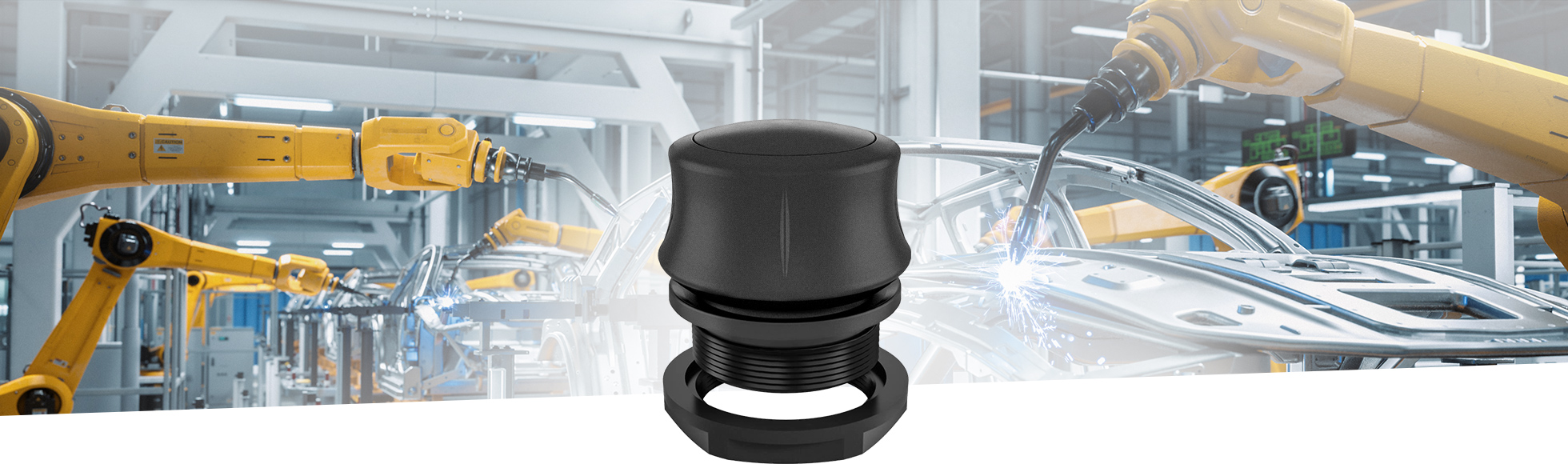

The Industrial Solution: SpaceMouse® Module

Precision in any conditions

The SpaceMouse Module is the ideal man-machine interface. Beneath the ergonomic controller cap is a precise, optoelectronic measuring system that converts movements on up to six axes into electrical signals. These are transformed into Cartesian coordinates (X,Y,Z,A,B,C) and sent to the application required via a USB or serial interface. With up to 700 measuring steps on each axis, excellent linear precision is assured.

The right choice for any location

The controller cap is exceptionally robust and durable so the SpaceMouse Module meets all the requirements in the IP54 protection class, including resistance to dust and splashes of water. It also operates independently of ageing, temperature and static magnetic fields. Combined with its slimline mounting depth, it makes the SpaceMouse Module the ideal choice for many industrial applications, from laboratories to production plants, e.g. in the robotics and automation sector.

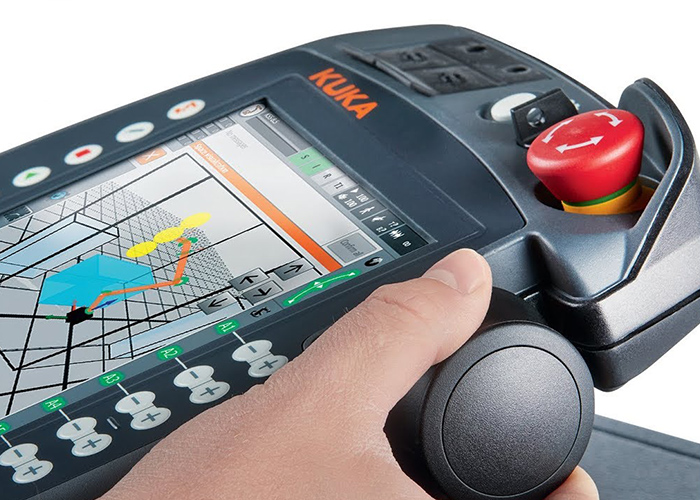

SpaceMouse Module used in KUKA Smartpad
SpaceMouse Module used in GROB4Pilot control panel

Technical Specifications


Max. Ø cap:
Vertical operating force:
Horizontal operating force:
Vertical displacement:
Horizontal displacement:
Twist and tilt angle:
52.2 mm
Ø53.8 mm
60 g
11.0 N
7.4 N
171 Nmm
1.5 mm (0.06 in)
1.5 mm (0.06 in)


Power supply:

Data rate:
+3.3 to +5.5 V / max. 10 mA (serial)
5 V +-10% / 20 mA (USB)
10 bit
100 / s

Operating conditions

Operating temperature:
Storage temperature:
IP Class:
0 °C to 50 °C
30 °C to 70 °C
EN61000-4-3 (10V,10V/m)
EN61000-4-2 / Level 4

Download technical specifications

Specification SpaceMouse® Module USB
Specification SpaceMouse® Module Serial

Our exclusive Partner for industrial and medical solutions

MEGATRON offers standard and customized versions of the SpaceMouse® Module

Visit MEGATRON website
